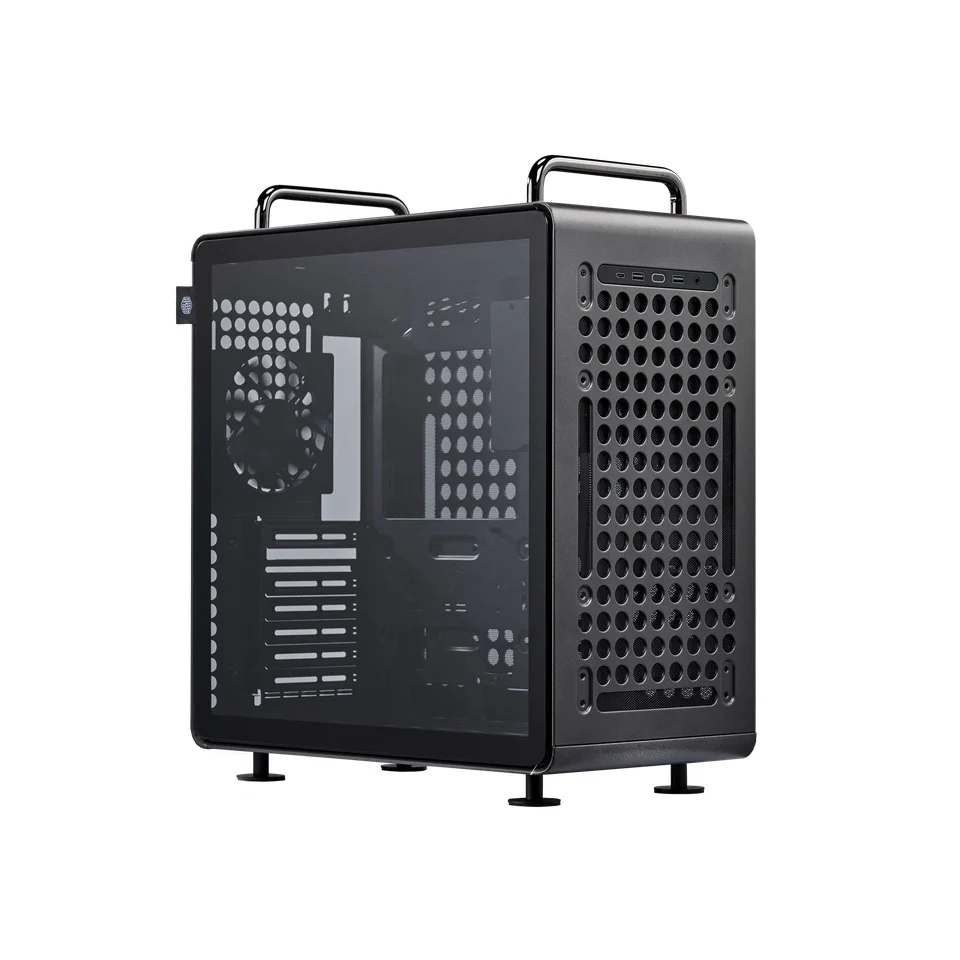

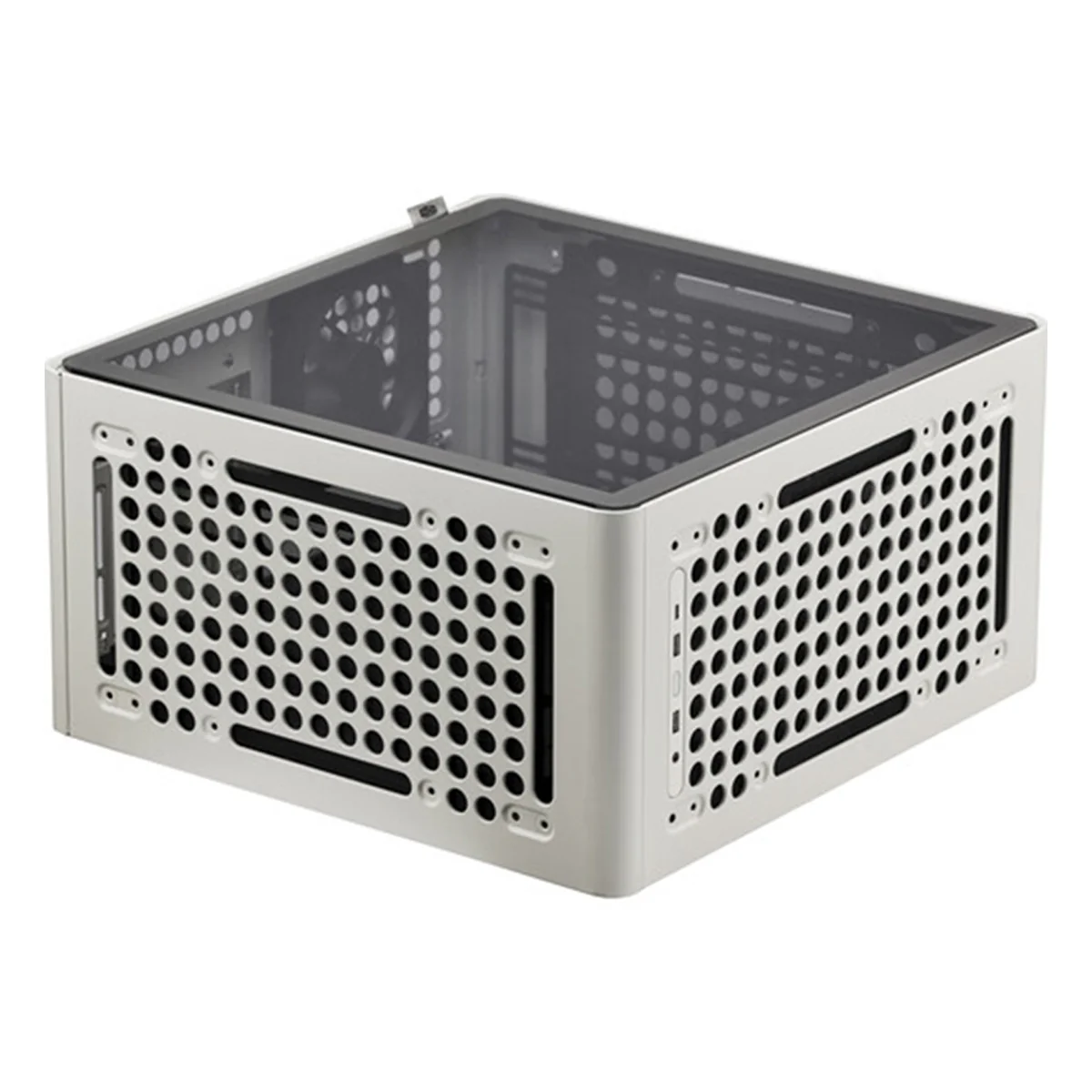

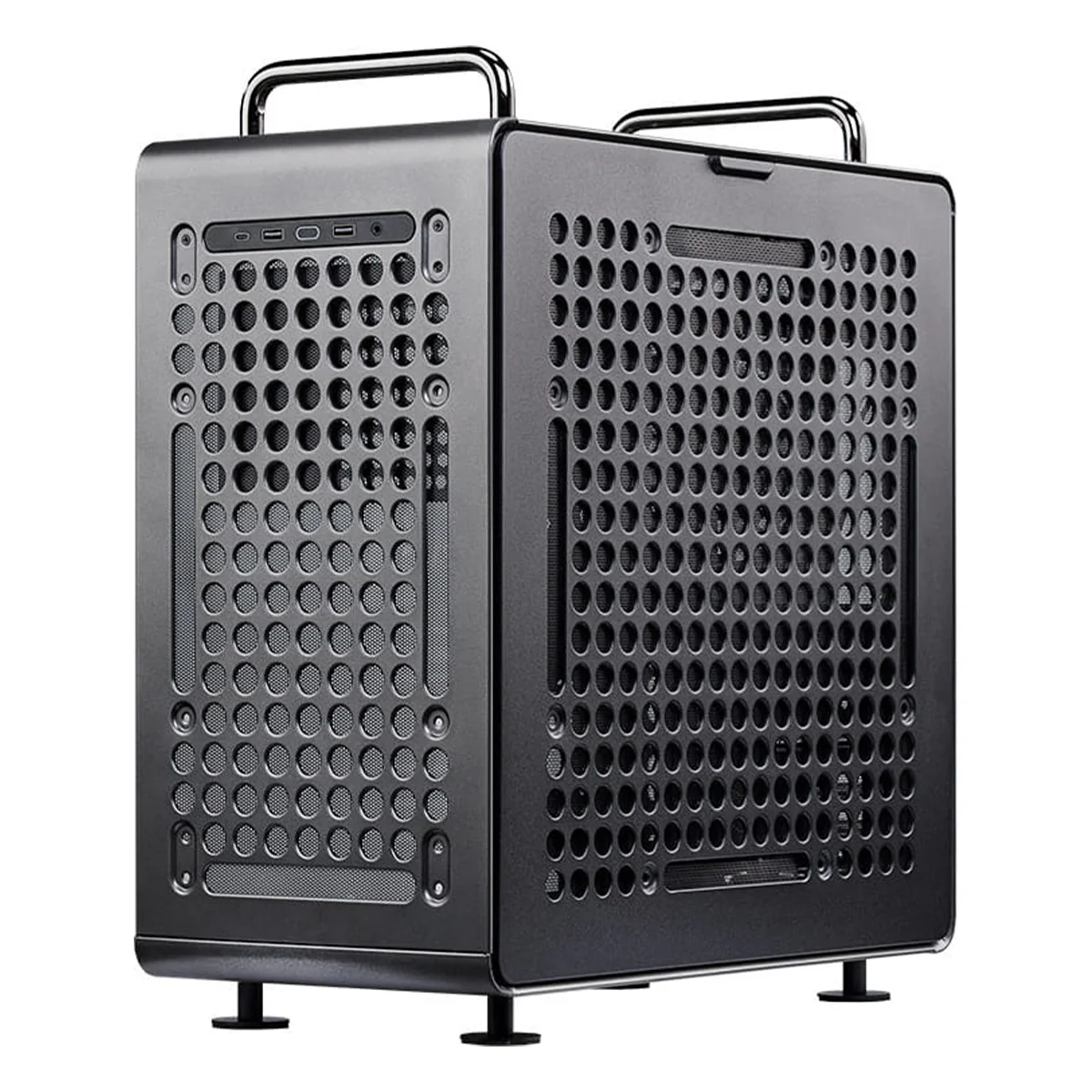

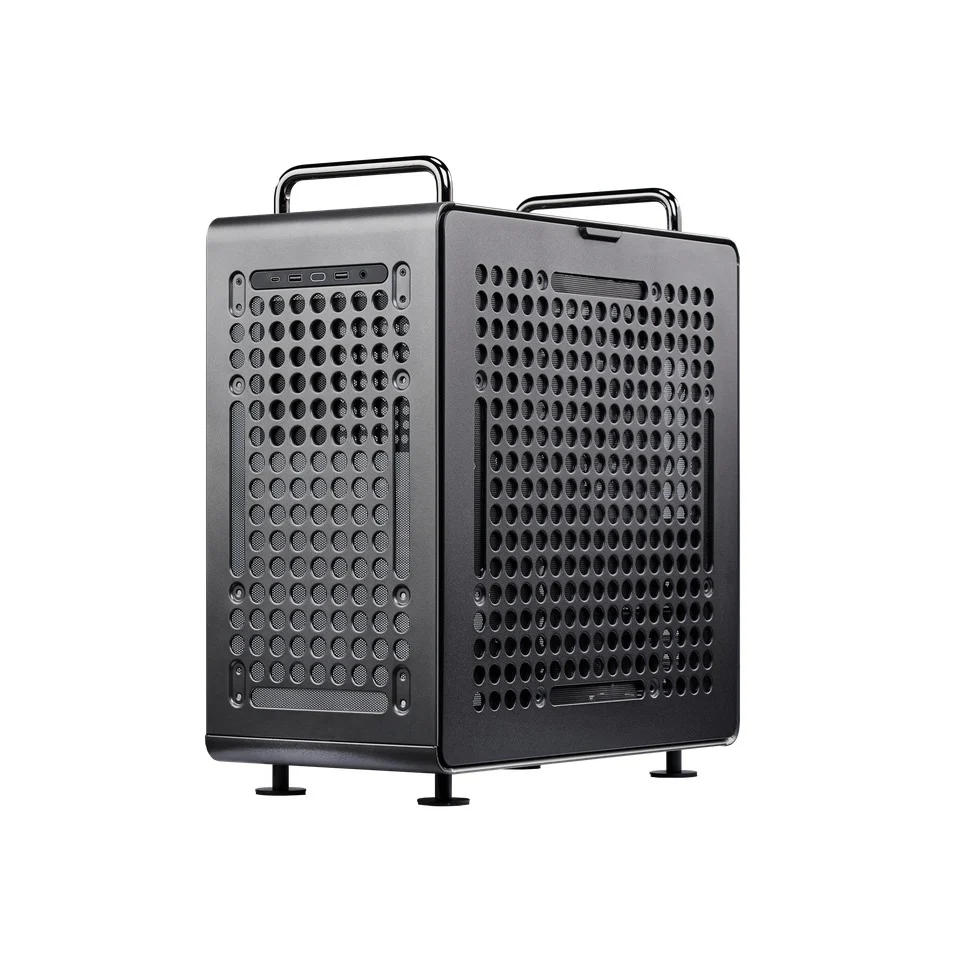

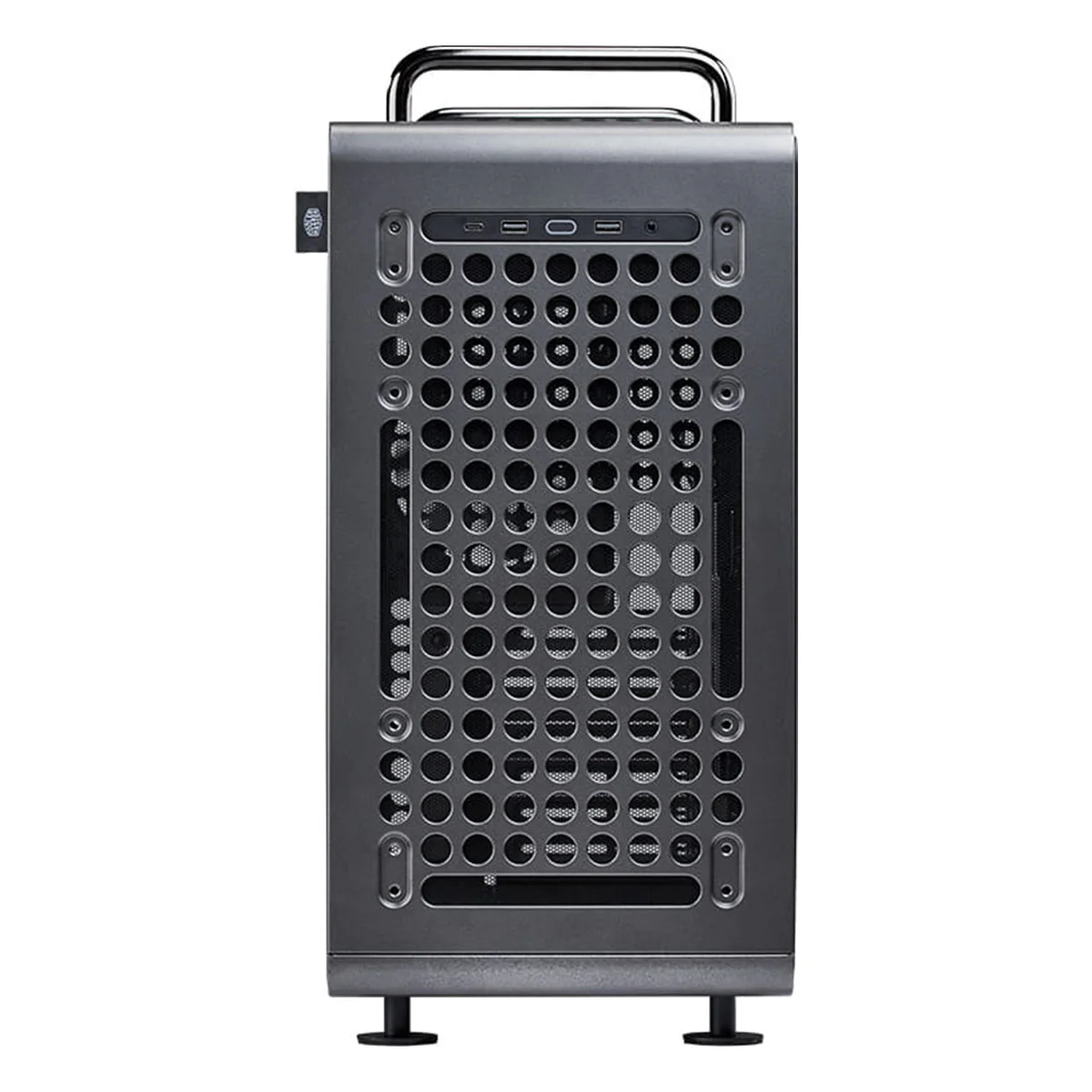

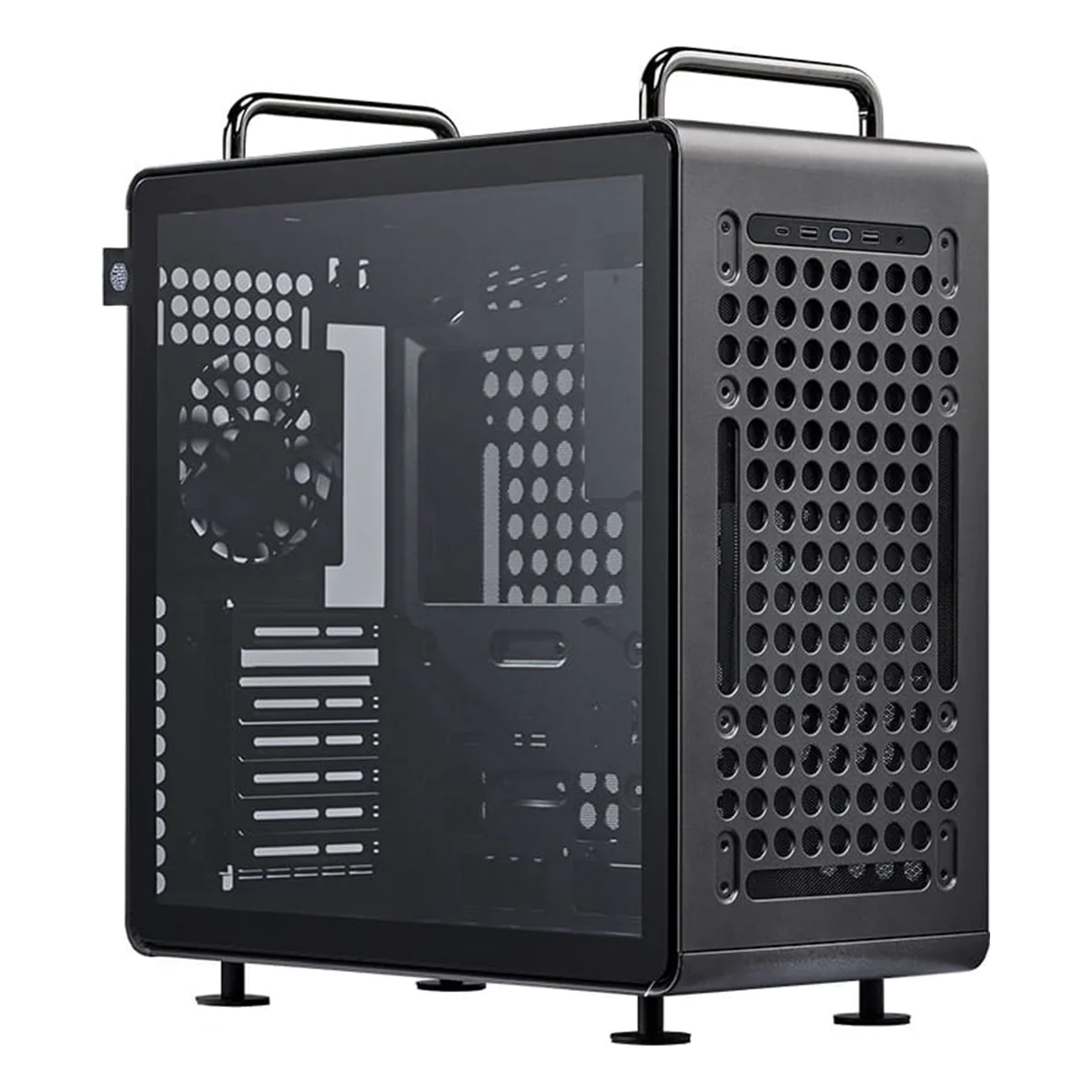

Cooler Master QUBE 540 ATX Mid-Tower PC Case (Moonstone, Stardust Iron) (Q540-LGNN-S00, Q540-MGNN-S00)
Specification:
| Product Name | QUBE 540 |
| Model Number | Stardust Iron: Q540-MGNN-S00 Moonstone: Q540-LGNN-S00 |
| Color(s) | Stardust Iron / Moonstone |
| Materials - Exterior | Steel |
| Material - Side Panel (Right) | Steel |
| Material - Side Panel (Left) | TG |
| Dimensions (L x W x H) | Incl. Protrusions: 438.5 x 225 x 492.1 mm Excl. Protrusions: 425 x 225 x 425 mm |
| Volume | 40.64 L (without protrusions) 48.55 L (with panel, protrusions and feet) |
| Motherboard Support | ITX / M-ATX / ATX / E-ATX (up to 280 mm) |
| Expansion Slots | 7 |
| Drive Bays – 5.25" | N/A |
| Drive Bays – 3.5" | 1 (Shared 3.5" and 2.5" mounting on PSU bracket) |
| Drive Bays – 2.5" | 2 (Max. 5) |
| I/O Panel – USB | 2 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C |
| I/O Panel – Audio | 1 x 3.5mm Mic / Audio Combo Jack |
| Fan Support – Front | 3 x 120mm (without I/O panel) / 2 x 140mm |
| Fan Support – Top | 3 x 120mm (without I/O panel) / 2 x 140mm |
| Fan Support – Rear | 1 x 120mm |
| Fan Support – Bottom | 3 x 120mm / 2 x 140mm |
| Preinstalled Fans – Front | N/A |
| Preinstalled Fans – Top | N/A |
| Preinstalled Fans – Rear | 1 x 120mm Black Fan |
| Radiator Support – Front | 140 / 280 / 360 mm (without I/O panel) |
| Radiator Support – Top | 140 / 280 / 360 mm (without I/O panel) |
| Radiator Support – Rear | 120 mm |
| Radiator Support – Bottom | 140 / 280 / 360 mm (without I/O panel) |
| Clearance – CPU Cooler | 172 mm |
| Clearance – Power Supply | 200 mm |
| Clearance – Graphics Card | 415 mm (without front fan) |
| Cable Routing – Behind Motherboard Tray | 27 mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX / SFX |
| Series | QUBE Series |
| Size | Mid Tower |
Select PC Case Color
From $17.05
Original: $56.84
-70%Cooler Master QUBE 540 ATX Mid-Tower PC Case (Moonstone, Stardust Iron) (Q540-LGNN-S00, Q540-MGNN-S00)—
$56.84
$17.05Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specification:
| Product Name | QUBE 540 |
| Model Number | Stardust Iron: Q540-MGNN-S00 Moonstone: Q540-LGNN-S00 |
| Color(s) | Stardust Iron / Moonstone |
| Materials - Exterior | Steel |
| Material - Side Panel (Right) | Steel |
| Material - Side Panel (Left) | TG |
| Dimensions (L x W x H) | Incl. Protrusions: 438.5 x 225 x 492.1 mm Excl. Protrusions: 425 x 225 x 425 mm |
| Volume | 40.64 L (without protrusions) 48.55 L (with panel, protrusions and feet) |
| Motherboard Support | ITX / M-ATX / ATX / E-ATX (up to 280 mm) |
| Expansion Slots | 7 |
| Drive Bays – 5.25" | N/A |
| Drive Bays – 3.5" | 1 (Shared 3.5" and 2.5" mounting on PSU bracket) |
| Drive Bays – 2.5" | 2 (Max. 5) |
| I/O Panel – USB | 2 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C |
| I/O Panel – Audio | 1 x 3.5mm Mic / Audio Combo Jack |
| Fan Support – Front | 3 x 120mm (without I/O panel) / 2 x 140mm |
| Fan Support – Top | 3 x 120mm (without I/O panel) / 2 x 140mm |
| Fan Support – Rear | 1 x 120mm |
| Fan Support – Bottom | 3 x 120mm / 2 x 140mm |
| Preinstalled Fans – Front | N/A |
| Preinstalled Fans – Top | N/A |
| Preinstalled Fans – Rear | 1 x 120mm Black Fan |
| Radiator Support – Front | 140 / 280 / 360 mm (without I/O panel) |
| Radiator Support – Top | 140 / 280 / 360 mm (without I/O panel) |
| Radiator Support – Rear | 120 mm |
| Radiator Support – Bottom | 140 / 280 / 360 mm (without I/O panel) |
| Clearance – CPU Cooler | 172 mm |
| Clearance – Power Supply | 200 mm |
| Clearance – Graphics Card | 415 mm (without front fan) |
| Cable Routing – Behind Motherboard Tray | 27 mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX / SFX |
| Series | QUBE Series |
| Size | Mid Tower |
