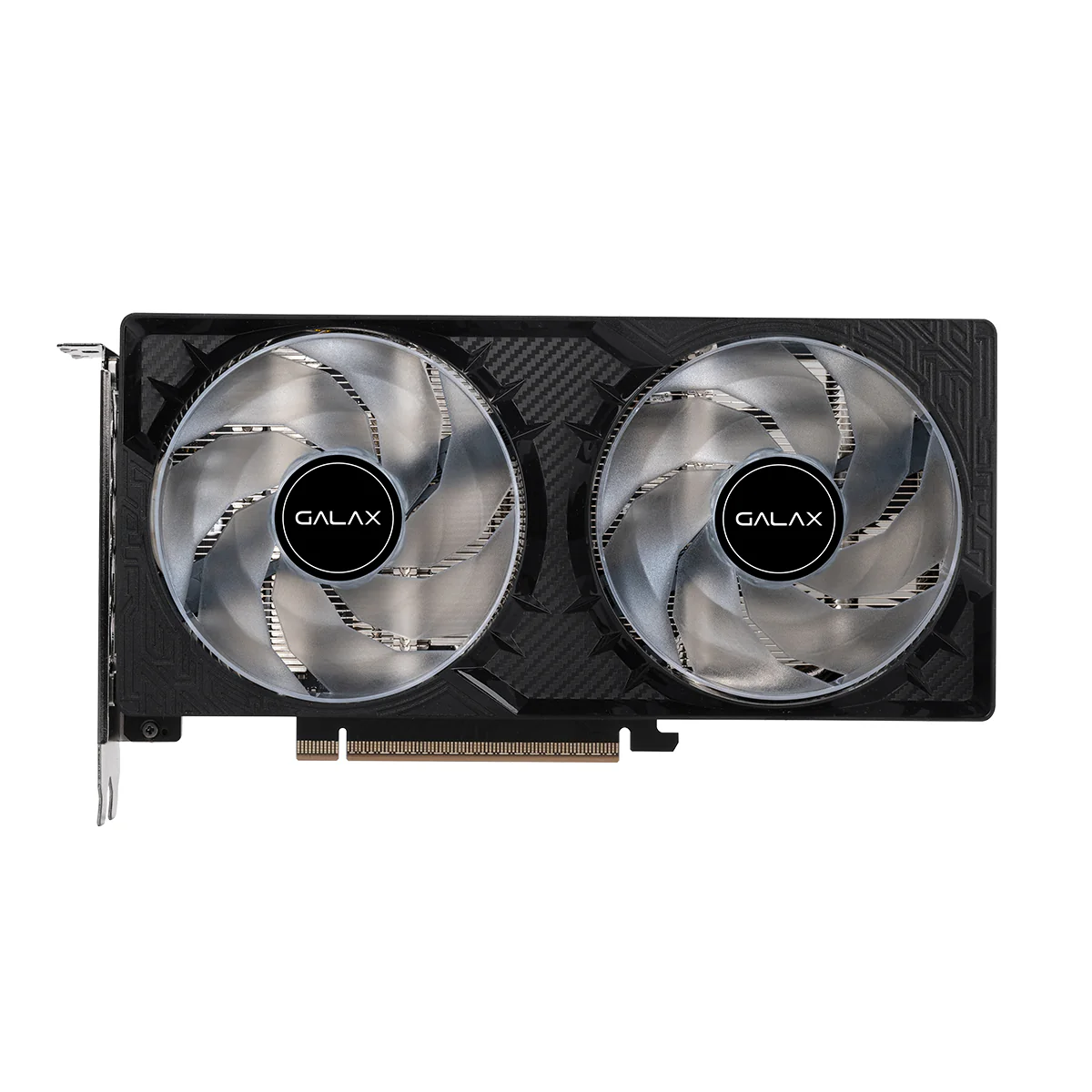

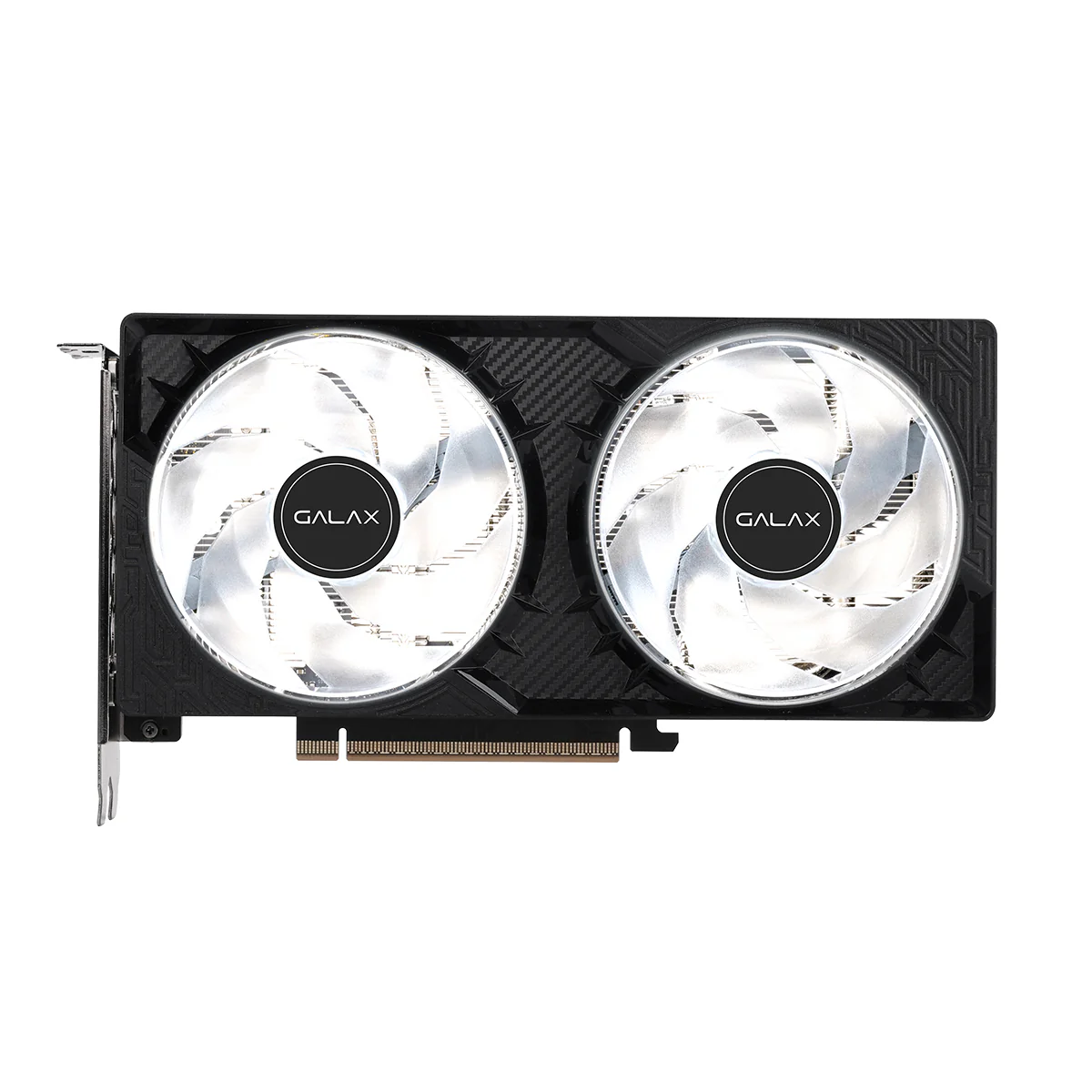

Galax GeForce RTX 5060 1-Click OC V2 8GB GDDR7 Gaming Graphics Card (Black) (56NSN8MDDXBO)

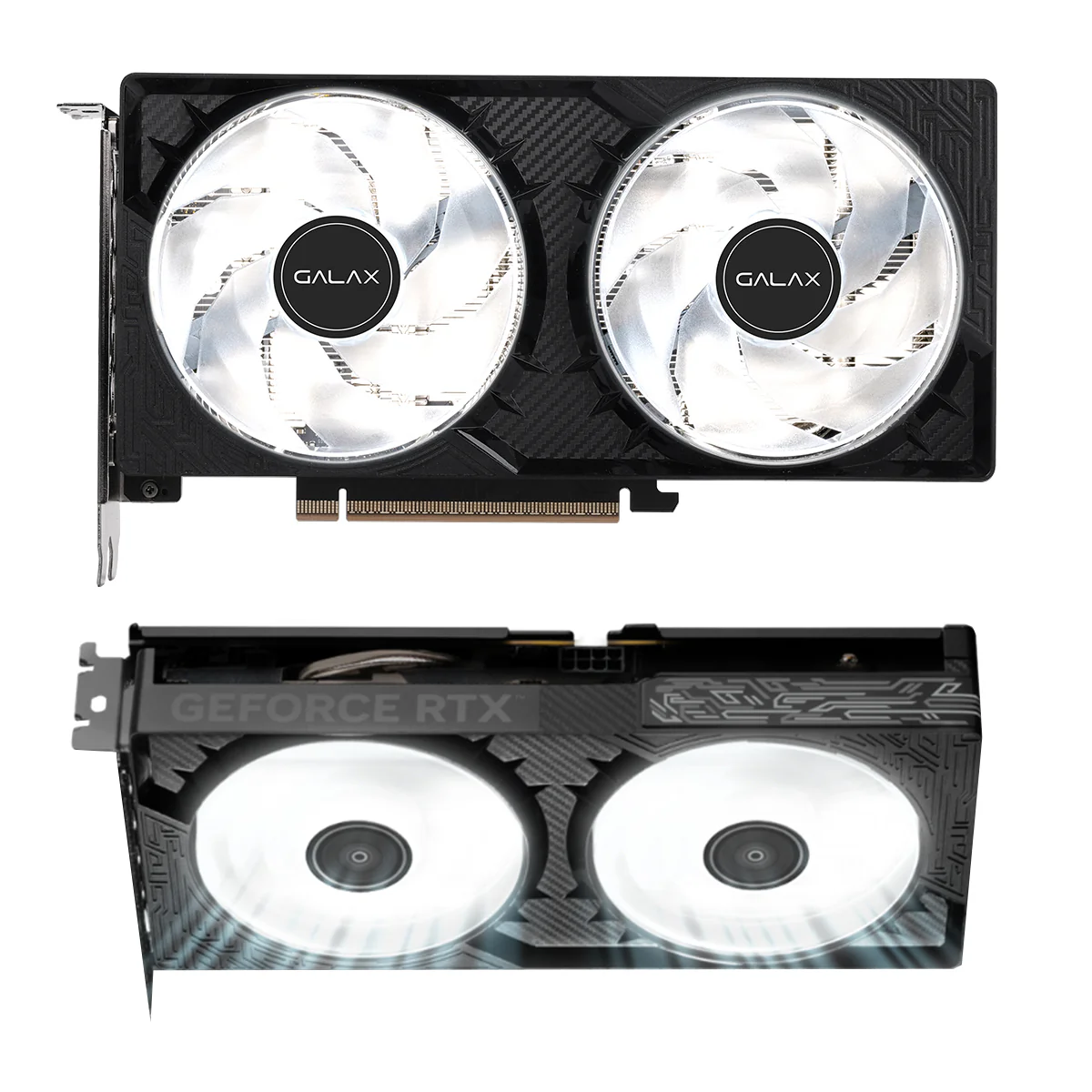

Joining the GeForce RTX 50 Series family, the GALAX GeForce RTX 5060 1-Click OC takes the stage as the latest addition of the brand-new lineup. Featuring 3*6mm heat pipes and the dual 92mm WINGS 3.0 fans that effectively dissipate heat of the graphics cards, the GPUs are optimized to run at optimal temperatures for sustained peak AI performance, letting the users to harness the groundbreaking power of NVIDIA’s newest Blackwell architecture. It deliver world-leading AI performance for compact PCs, uplifting gaming experiences with faster speed and stunning visuals while simultaneously accelerating workflows for increased productivity.

• Powered by the NVIDIA Blackwell Architecture and DLSS 4
• Dedicated Tensor Cores
• Dedicated RT Cores
• Microsoft DirectX® 12 Ultimate
• GDDR7 Graphics Memory
• NVIDIA DLSS 4
• NVIDIA® App
• NVIDIA G-SYNC®
• NVIDIA GPU Boost™
• Game Ready and NVIDIA Studio Drivers
• DisplayPort 2.1b, HDMI 2.1b
• VR Ready
• To 1-Click OC, overclock and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
• The LED lighting effects can be toggled on or off via the onboard physical switch.
• All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor/importer for confirmation.



Specifications:

CUDA Cores	3840
Boost Clock	2512 MHz
1-Click OC Clock	2527 MHz (via Xtreme Tuner Plus Software)
Memory	8GB GDDR7
Memory Speed	28 Gbps
Memory Interface	128-bit
Memory Bandwidth	448 GB/s
PCIe Interface	PCIe 5.0
OS Support	Windows 11 64-bit
Fans	2 × 92 mm (WINGS 3.0, Fan Stop at Idle)

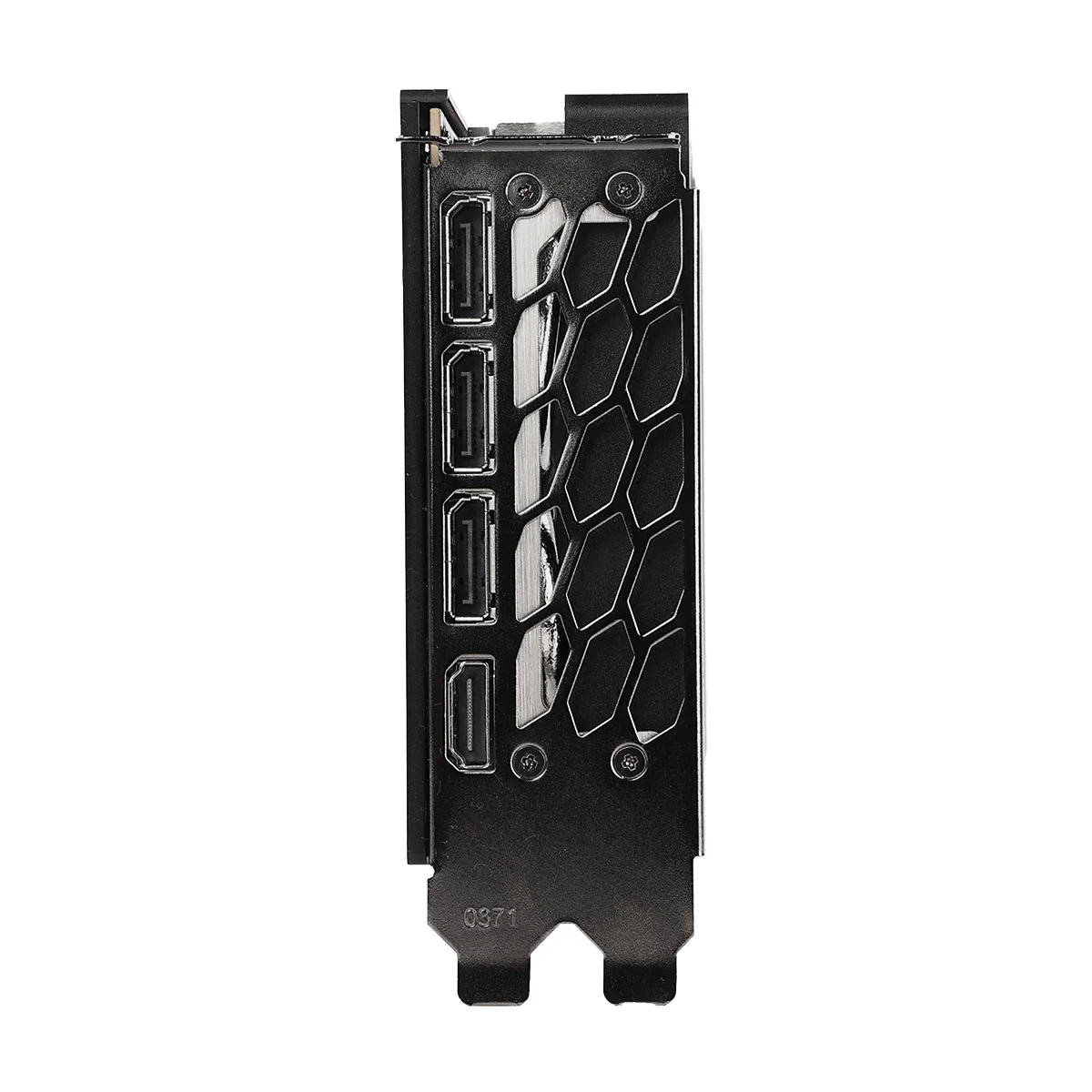

Display Outputs	3 × DisplayPort 2.1b, 1 × HDMI 2.1b
Dimensions (with bracket)	234 × 129.5 × 40.6 mm
Dimensions (without bracket)	222 × 114 × 39.6 mm
