Boost Clock* : up to 2599 MHz (Reference card: 2544 MHz)
Game Clock* : up to 2276 MHz (Reference card: 2171 MHz)

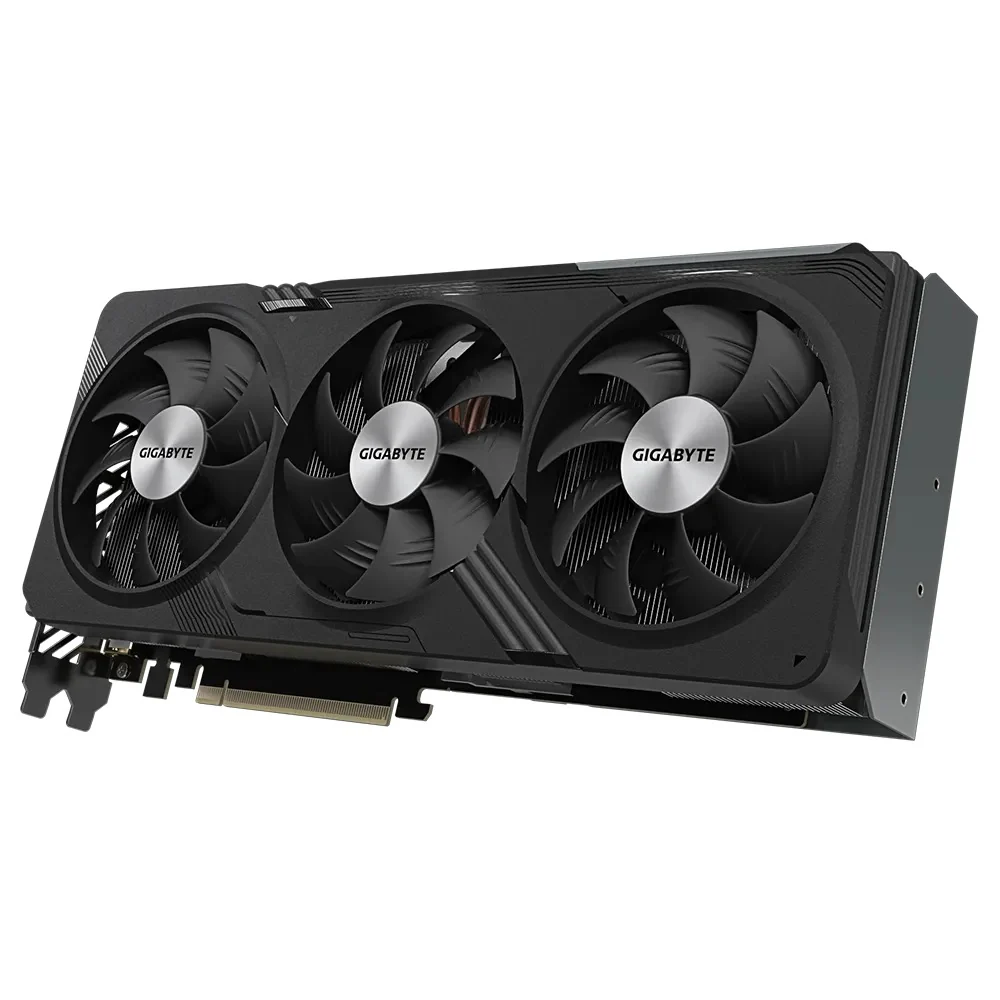

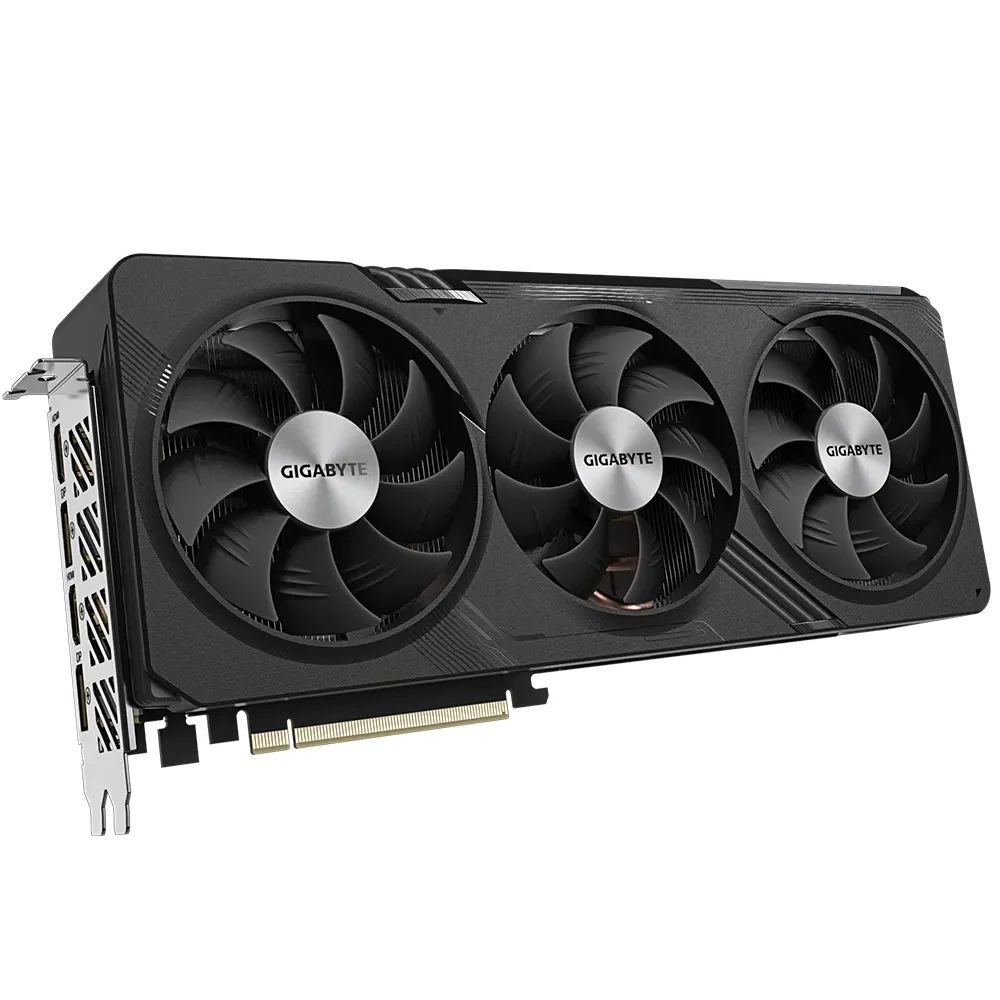

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Extended heatsink allows air to pass through, providing better heat dissipation.
| Graphics Processing | Radeon™ RX 7700 XT |
| Core Clock | Boost Clock* : up to 2599 MHz (Reference card: 2544 MHz) Game Clock* : up to 2276 MHz (Reference card: 2171 MHz) |
| Stream Processors | 3456 |
| Memory Clock | 18 Gbps |
| Memory Size | 12 GB |
| Memory Type | GDDR6 |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=302 W=130 H=56 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 700W |
| Power Connectors | 8 Pin*2 |

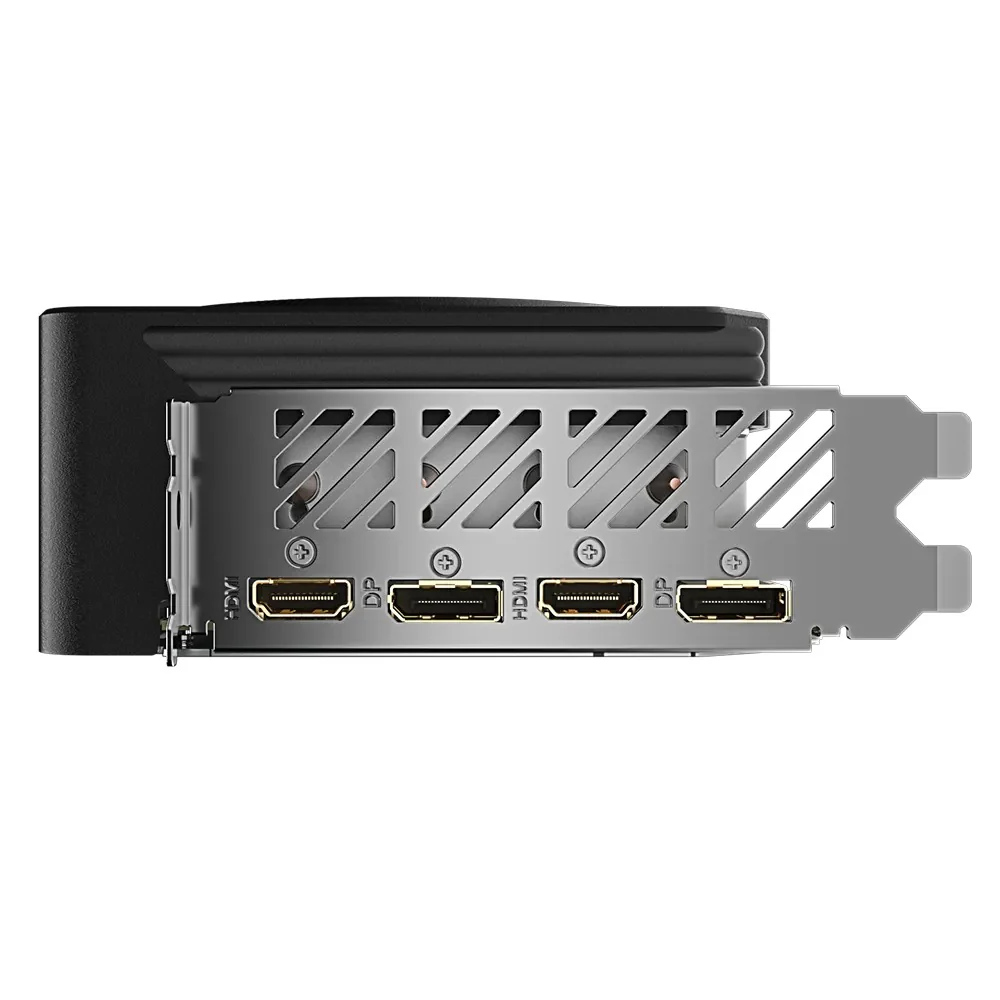

| Output | DisplayPort 2.1 *2 HDMI 2.1 *2 |
| Accessories | Quick guide |
| Note | * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.GD-151 * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147 |
Original: $468.29
-70%$468.29
$140.49Product Information
