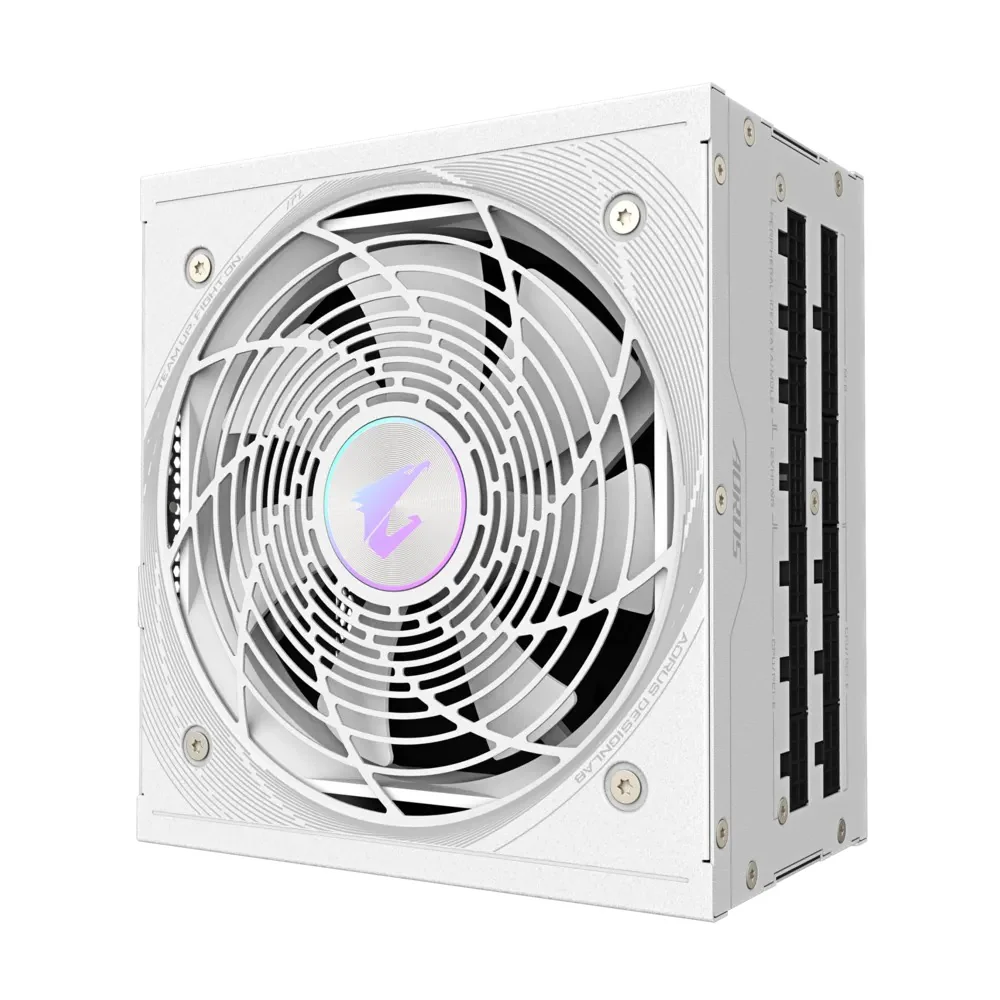

Gigabyte Aorus Elite P850W 80+ Platinum Modular Pcie 5.0 Ice Power Supply (White)
Aorus Elite P850W 80+ Platinum Modular Pcie 5.0 Power Supply
The Gigabyte Aorus Elite P850W 80+ Platinum Modular PCIe 5.0 Power Supply is a high-performance PSU designed to meet the demanding needs of modern gaming and professional systems. Featuring an 80 Plus Platinum efficiency rating, it ensures minimal energy wastage and heat generation, contributing to both environmental conservation and long-term cost savings.
SPECIFICATION
| Model | GP-AE850PM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimension | 150 x 140 x 86mm |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) Fan |
| 80 PLUS | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All white |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 |
| CPU/EPS 4+4 Pin x 2 : 700mm*2 | |
| PCI-e 16 Pin x 1: 700mm*1 | |
| PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 | |
| SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 :500mm+150mm+150mm+150mm*1 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Aorus Elite P850W 80+ Platinum Modular Pcie 5.0 Power Supply
The Gigabyte Aorus Elite P850W 80+ Platinum Modular PCIe 5.0 Power Supply is a high-performance PSU designed to meet the demanding needs of modern gaming and professional systems. Featuring an 80 Plus Platinum efficiency rating, it ensures minimal energy wastage and heat generation, contributing to both environmental conservation and long-term cost savings.
SPECIFICATION
| Model | GP-AE850PM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimension | 150 x 140 x 86mm |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) Fan |
| 80 PLUS | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All white |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 |
| CPU/EPS 4+4 Pin x 2 : 700mm*2 | |
| PCI-e 16 Pin x 1: 700mm*1 | |
| PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 | |
| SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 :500mm+150mm+150mm+150mm*1 |
