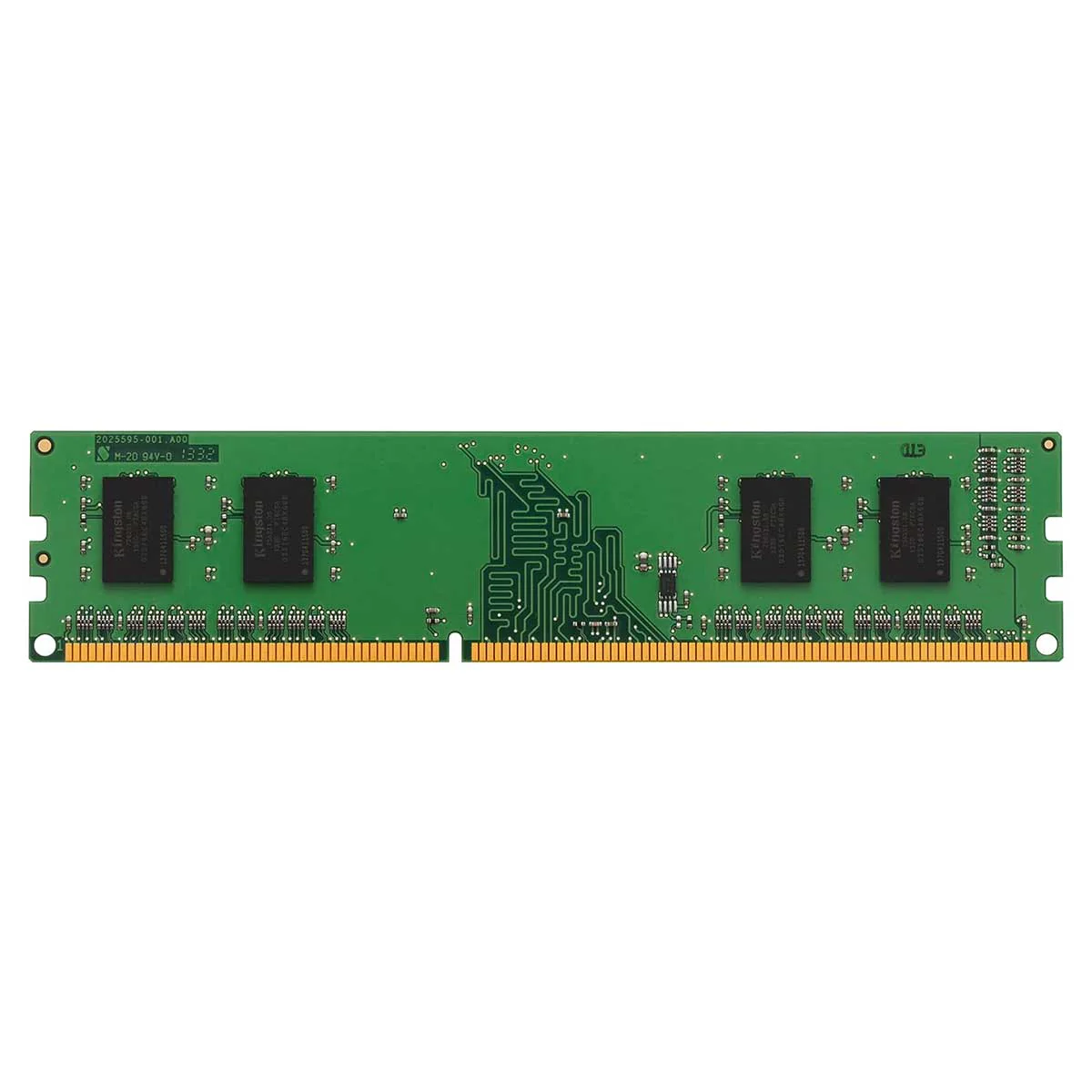

Kingston KVR26N19S8/8 8GB DDR4 2666Mhz DIMM Memory
- This document describes ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
• Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical • VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
