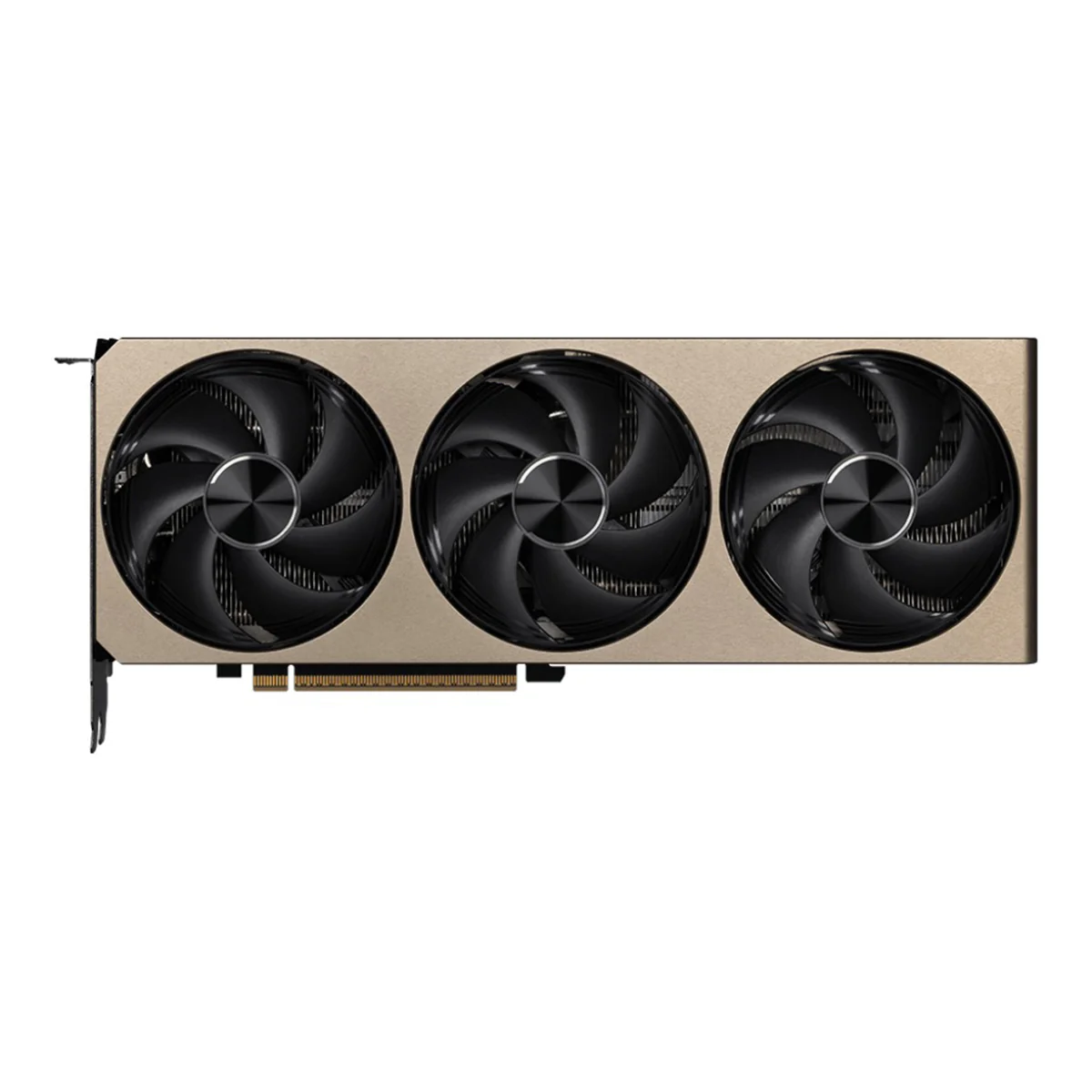

MSI GeForce RTX 5070 12GB GDDR7 Inspire 3X OC Graphics Card
GeForce RTX™ 5070 12G INSPIRE 3X OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
-
Core Clock:
Extreme Performance: 2557 MHz (MSI Center)
Boost: 2542 MHz - STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- WAVE-CURVED 3.0: Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
- AIR ANTEGRADE FIN: Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.
- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| GeForce RTX™ 5070 12G INSPIRE 3X OC Specifications | |
|---|---|
| Marketing Name | GeForce RTX™ 5070 12G INSPIRE 3X OC |
| Model Name | G5070-12I3C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2557 MHz (MSI Center), Boost: 2542 MHz |
| CUDA® CORES | 6144 Units |
| Memory Speed | 28 Gbps |
| Memory | 12GB GDDR7 |
| Memory Bus | 192-bit |
| Output | DisplayPort x 3 (v2.1b), HDMI™ x 1 (HDMI™ 2.1b: 4K 480Hz or 8K 120Hz with DSC) |
| HDCP Support | Yes |
| Power Consumption | 250 W |
| Power Connectors | 16-pin x 1 |
| Recommended PSU | 650 W |
| Card Dimension (mm) | 288 x 112 x 50 mm |
| Weight (Card / Package) | 914 g / 1312 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
