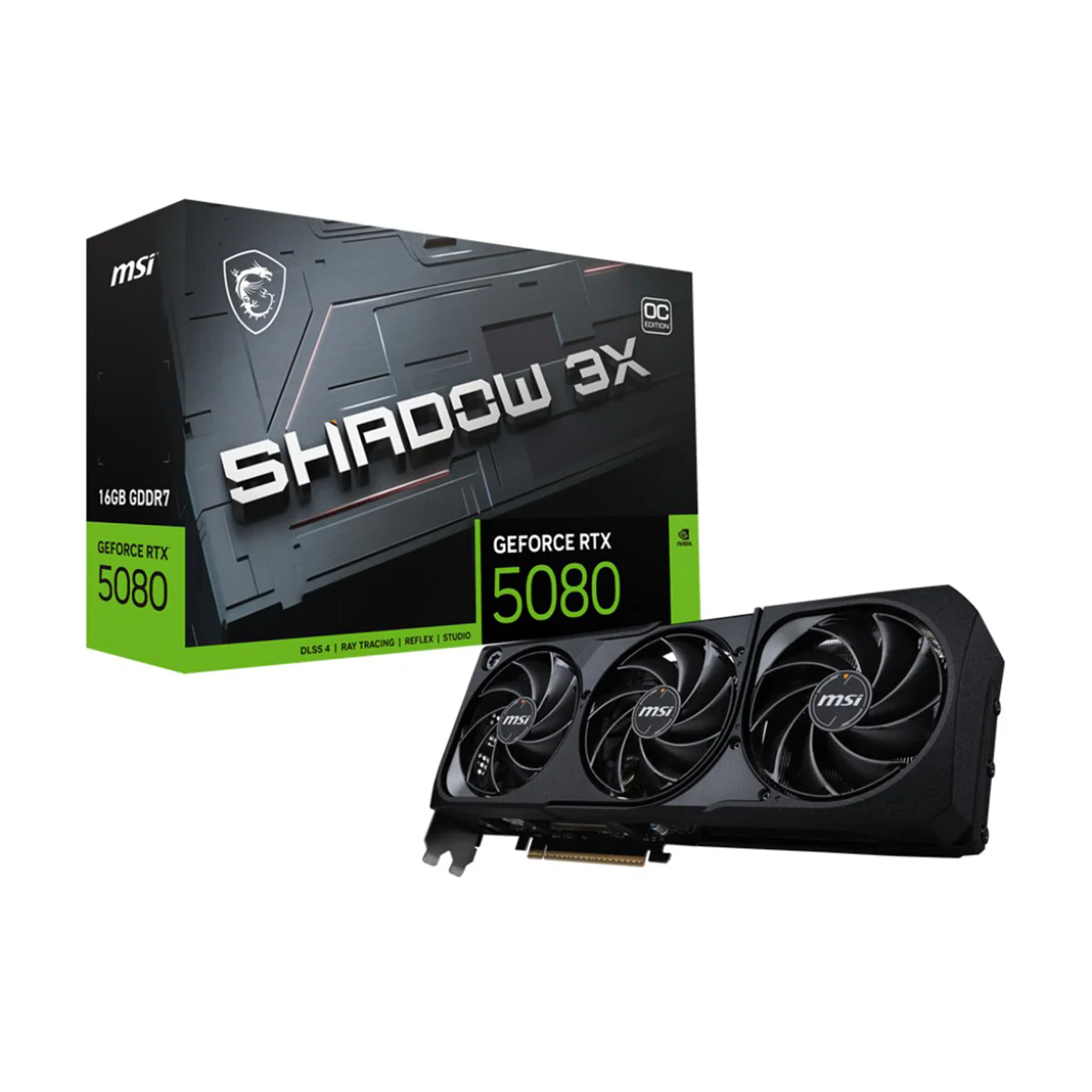

MSI GeForce RTX 5080 16GB GDDR7 Shadow 3X OC Graphics Card
GeForce RTX™ 5080 16G SHADOW 3X OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
-
Core Clocks:
Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specification:
| Marketing Name | GeForce RTX™ 5080 16G SHADOW 3X OC |
| Model Name | G5080-16S3C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2655 MHz (MSI Center) |
| Boost: 2640 MHz | |
| CUDA® CORES | 10752 Units |
| Memory Speed | 30 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |
| Output | DisplayPort x 3 (v2.1b) |
| HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) | |
| HDCP Support | Y |
| Power consumption | 360 W |
| Power connectors | 16-pin x 1 |
| Recommended PSU | 850 W |
| Card Dimension (mm) | 303 x 121 x 49 mm |
| Weight (Card / Package) | 1046 g / 1546 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
$1,510.02
MSI GeForce RTX 5080 16GB GDDR7 Shadow 3X OC Graphics Card—
$1,510.02
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
GeForce RTX™ 5080 16G SHADOW 3X OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
-
Core Clocks:
Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specification:
| Marketing Name | GeForce RTX™ 5080 16G SHADOW 3X OC |
| Model Name | G5080-16S3C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2655 MHz (MSI Center) |
| Boost: 2640 MHz | |
| CUDA® CORES | 10752 Units |
| Memory Speed | 30 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |
| Output | DisplayPort x 3 (v2.1b) |
| HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) | |
| HDCP Support | Y |
| Power consumption | 360 W |
| Power connectors | 16-pin x 1 |
| Recommended PSU | 850 W |
| Card Dimension (mm) | 303 x 121 x 49 mm |
| Weight (Card / Package) | 1046 g / 1546 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
