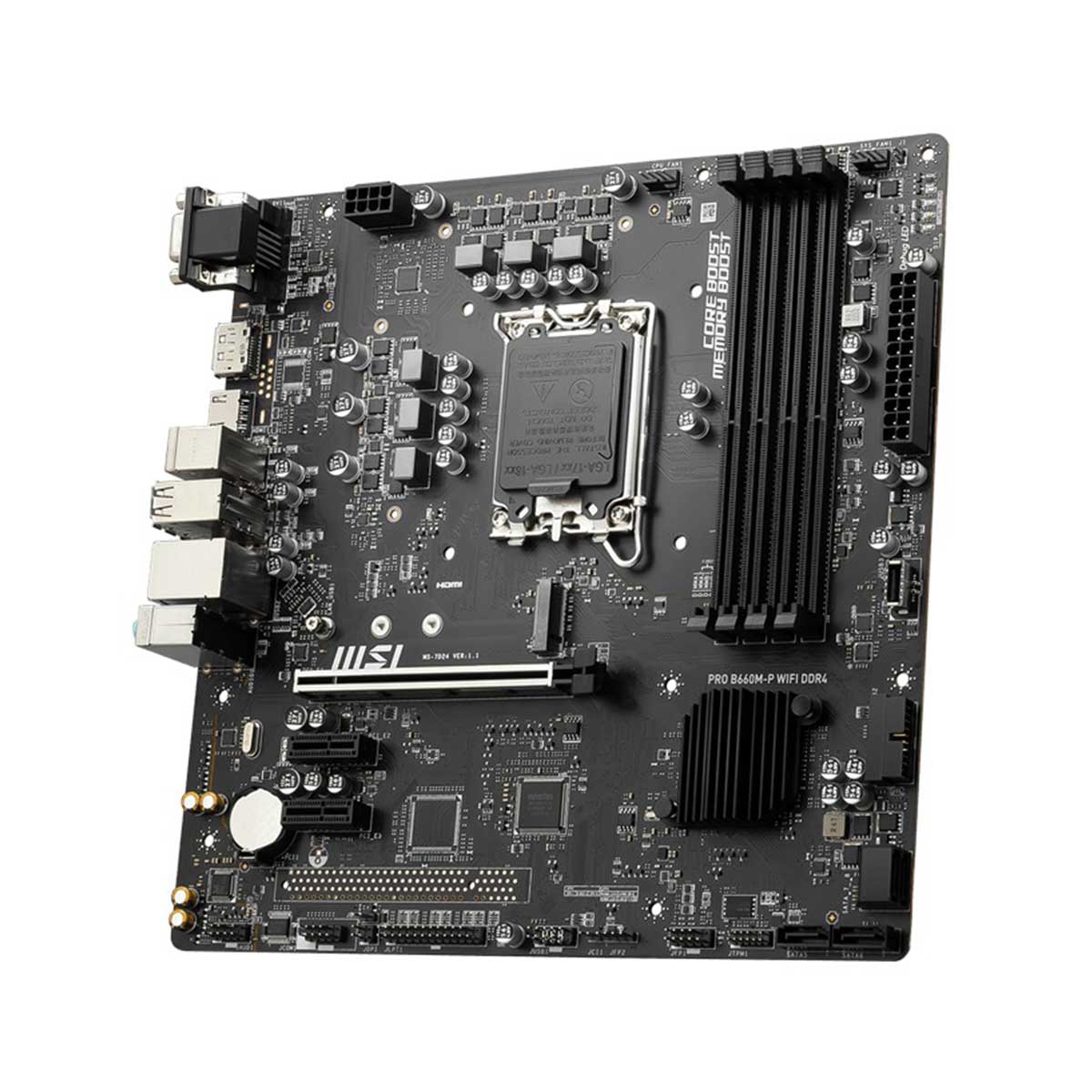

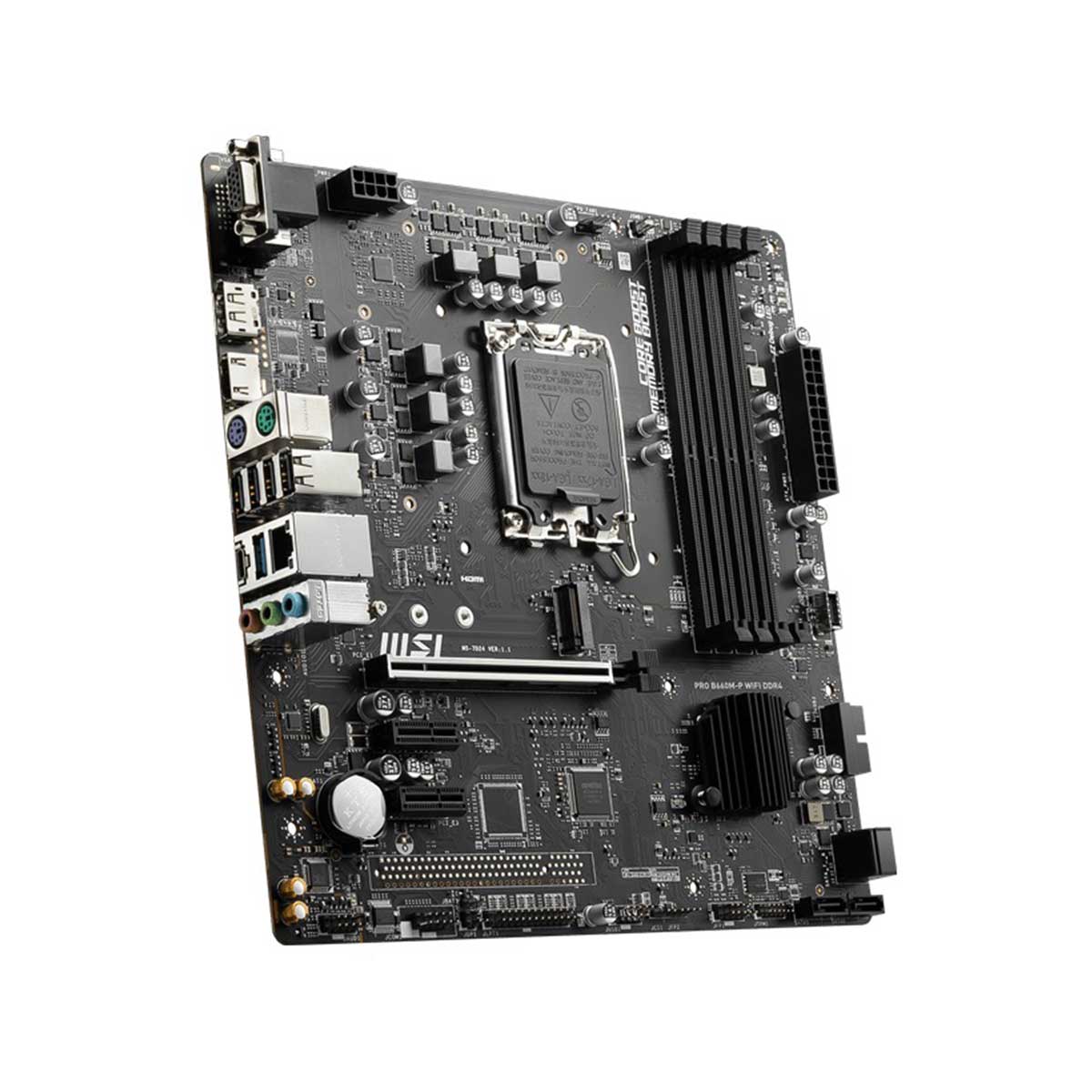

MSI Pro B660M-P WiFi DDR4 Intel Motherboard
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4600+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
- Wireless and Bluetooth: Intel® Dual Band Wireless-AC 3168, Bluetooth 4.2
SPECIFICATION
| SOCKET | 1700 |
| CHIPSET | Intel B660 Chipset |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 1 |
| PCI-E X1 | 2 |
| SATAIII | 4 |
| M.2 SLOT | 1 |
| RAID | 0/1/5/10 |
| TPM (HEADER) | 1 |

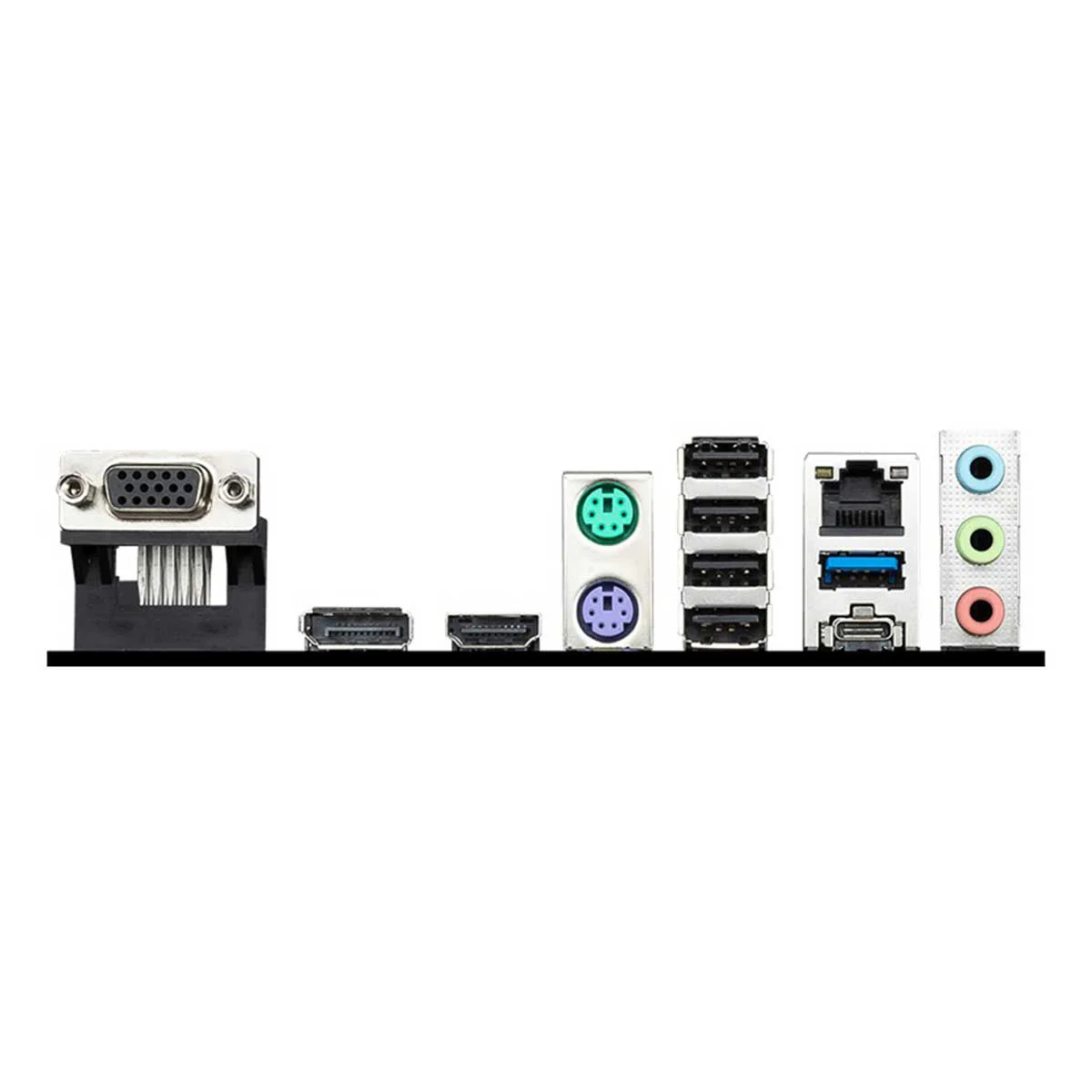

| USB 3.2 PORTS (FRONT) | 2(Gen 1, Type A), 1(Gen 1, Type C) |
| USB 3.2 PORTS (REAR) | 1(Gen 2, Type C), 1(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 2 |
| USB 2.0 PORTS (REAR) | 4 |
| SERIAL PORTS(FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek ALC897 Codec |
| DISPLAYPORT | 1 |
| VGA | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| CPU SUPPORT | Support for Windows 11 64-bit, Windows 10 64-bit |
| FORM FACTOR | MATX |
$112.62
